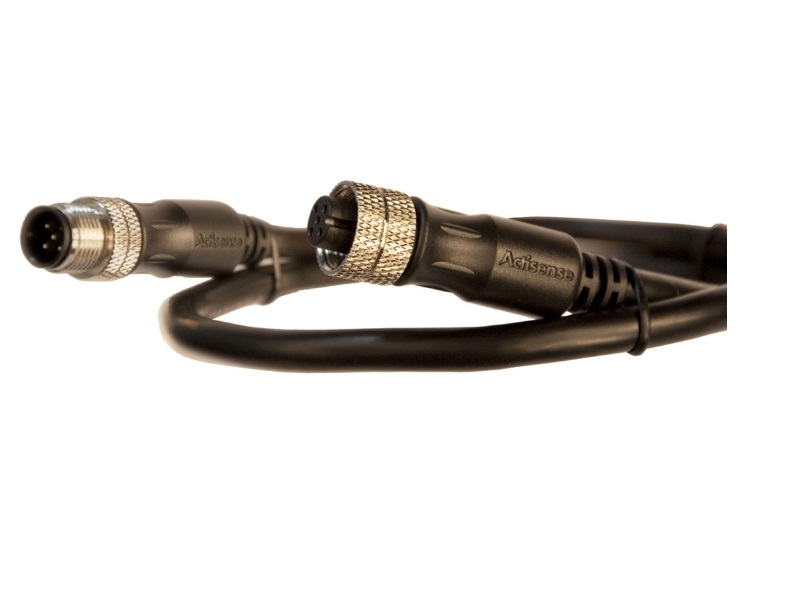

A2K-TDC-1M - NMEA 2000 Micro Cable Assembly 1 meter

Available in various lengths, the cable assemblies can be used as either drop cable* from an NMEA 2000 backbone or to extend the length of the backbone cable.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge. All Actisense products are NMEA 2000 certified and fully compatible with other NMEA 2000 connectors and devices.
All Actisense connectors follow the DeviceNet® standard.

*The maximum length of a single drop cable to a connected device is 6 metres.

Technical Specifications

Electrical

• Rated Current: 4 A
• Rated Voltage: 25 V (AC/DC)

Mechanical

• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PBT, black
• Contact Polarization: Standard M12 - "A" - Polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, black
• Housing: PVC, black
• Power Pair: 22 AWG (19 strand tinned copper)
• Data Pair: 24 AWG (19 strand tinned copper)
• Drain: 22 AWG (19 strand tinned copper)
• Braid: 37 AWG (trinned copper)
• Jacket Material: 0.8 mm Nom. PVC, black
• Jacket Outer Diameter: 6.85 mm ± 0.254 mm
• Weight: 102g

Approvals and Certifications

• Protection: IP67 (when mated)
• Operating Temperature: - 20°C to + 70°C
• Storage Temperature: - 40°C to +85°C
• NMEA 2000 Certified
• RoHs Compliant
• UL Certified (E137250, UL1277)
