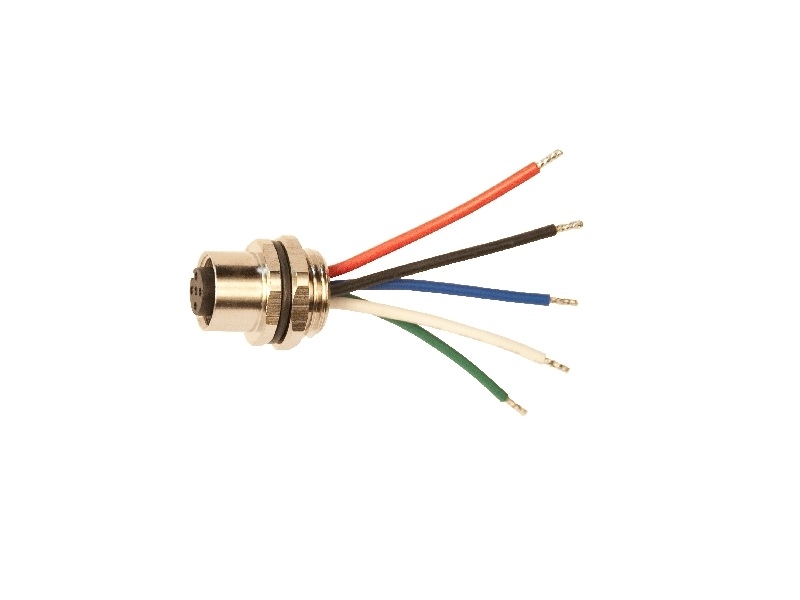

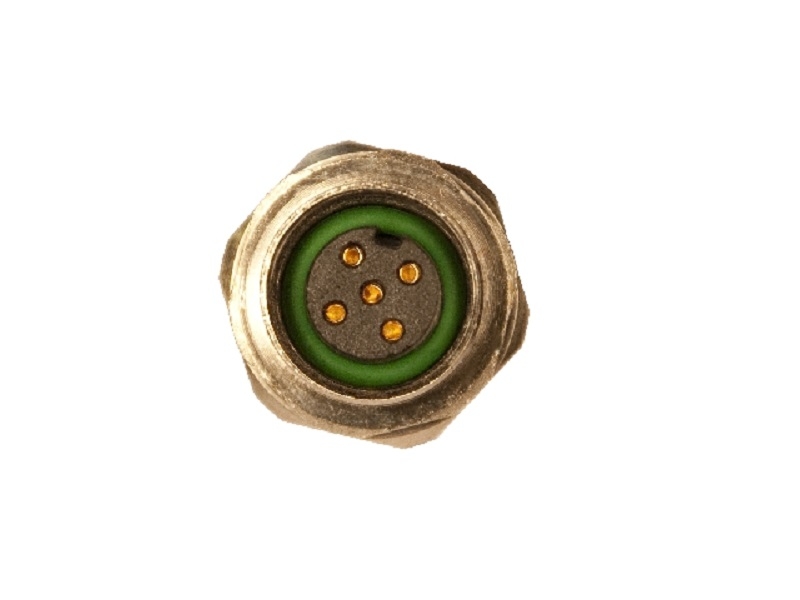

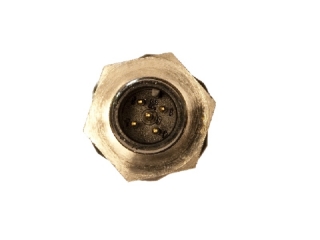

A2K-PMW-F - Panel Mount Wired Connector

Waterproof seals ensure the integrity of the NMEA 2000 connection and the bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing 'drop' glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

Technical Specifications

Electrical

• Rated Current: 4 A
• Rated Voltage: 60 V (AC/DC)

Mechanical

• Contacts: Brass, gold plated
• Contact Carrier: Nylon & GF
• Contact Polarization: Standard M12 - "A" - Polarization
• Mating Thread: M12
• Female O-Ring Seal: Rubber Green
• Housing : Brass, nickel plated
• Mounting Thread: PG9 (see diagram)
• Mounting Nut: Brass, nickel plated - PG9
• Mounting Hole Dimensions: 15.3mm (diameter)
• Wires: 18 AWG (stripped and tinned)
• Wire Jacket: PVC
• Weight: 20g

Approvals and Certifications

• Protection: IP67 (when mated)
• Operating Temperature: - 20°C to + 90°C
• Connector Specification: Meets IEC61076-2-101
• NMEA 2000 Pending
• RoHs Compliant
• UL Certified (E321413)
