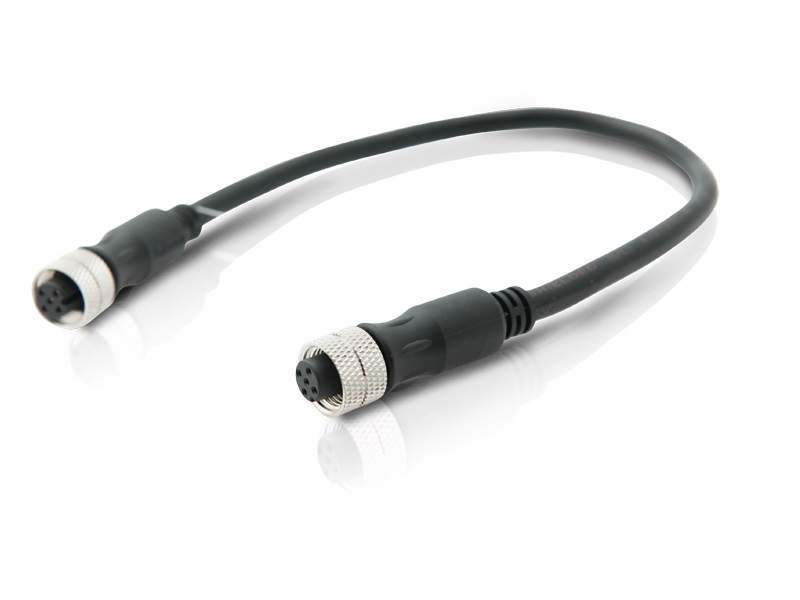

A2K-GCF-0M25 Lite Gender Changer Cables (female to female)

Overcomes the problem of connecting two devices or cables which have the same gender of connector on an NMEA 2000® backbone.

Manufactured using Actisense designed connectors and with 0.25m UL certified cable, the gender changers offer easy and secure connections.

SPECIFICATION

Electrical

• Rated Current: 4A
• Rated Voltage: 60VDC

Mechanical

• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PBT, black
• Contact Polarisation: Standard M12 -“A”- polarisation
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, black
• Housing: PVC, black
• Power Pair: 22 AWG (19 strand tinned copper)
• Data Pair: 24 AWG (19 strand tinned copper)
• Drain: 22 AWG (19 strand tinned copper)
• Braid: 37 AWG (tinned copper)
• Jacket Material: 0.8mm Nom. PVC, black
• Jacket Outer Diameter: 6.85mm ±0.254mm
• Weight: 50g
• Length: 0.25m

Approvals and Certifications

• Protection: IP67 (when mated)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• NMEA 2000 Approved
• RoHS Compliant
• UL Certified (E137250), (UL1277)
