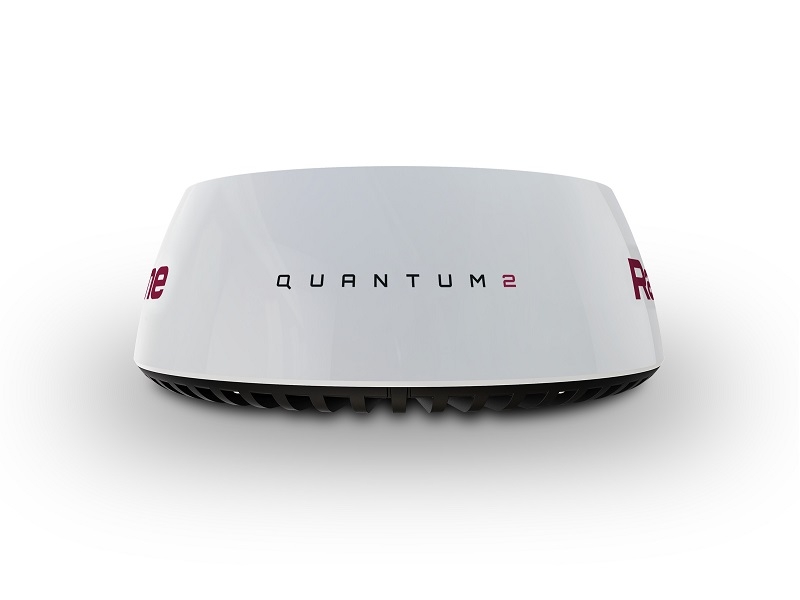

Quantum 2 - Q24D Doppler Radar Antenna with 10m power and data cables

The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.

Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.

Easily Identify Dangerous Targets

Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.

Superior Collision Avoidance

Quantum 2 MARPA mode provides an effective means of dangerous target tracking. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.

Key Features

• Doppler moving target display allows for superior situational awareness at-a-glance
• Fully automatic ARPA target tracking, along with manual MARPA mode
• Adjustable TrueTrails target history shows the motion history of moving contacts
• CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation
• 24-mile range for early detection of traffic, navigation aids, landfall and weather
• Immediate awareness – Quantum starts up and is ready to go in seconds
• Superior interference rejection eliminates noise from other radars
• Simplified installation with Wi-Fi or thin wire network connectivity
• Easy upgrade – Quantum 2 fits the same bolt pattern as other Raymarine scanners
• Lightweight and easy to install – Quantum weighs up to 50% less than comparable magnetron radars
• Safe emissions – mount Quantum anywhere onboard
• Low power consumption for extended battery life under sail

HOW DOPPLER RADAR WORKS

Microwave energy waves are bounced off of a distant target, just like conventional radar.

Moving targets send back echoes whose frequencies shift upward or downward from what was originally transmitted.

For inbound targets, the frequency increases as the leading edge of the returning echoes are received more frequently as the target’s range decreases.

For outbound targets, the frequency drops as the returning echoes spread out as its range increases.

Doppler radars are engineered to detect these small shifts in wave frequency, and use them to classify moving radar targets.

DOPPLER TARGET PROCESSING

Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.

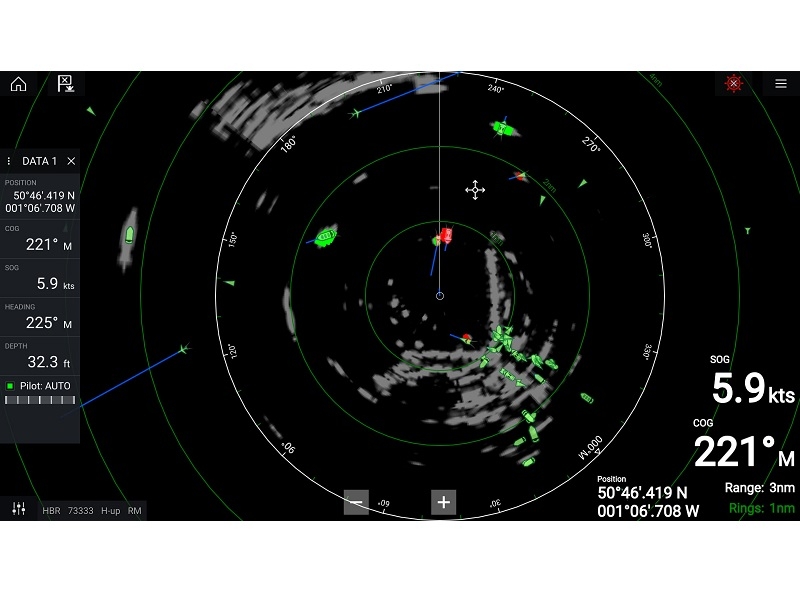

Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.

• Inbound targets are colored red.
• Outbound targets are colored green.

Color coded targets make it simple to pick out moving traffic from other stationary targets like land, navigation aids or stopped/anchored vessels.

AUTOMATIC TARGET ACQUISITION AND TRACKING

The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.

Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.

RUGGED & LIGHTWEIGHT DESIGN

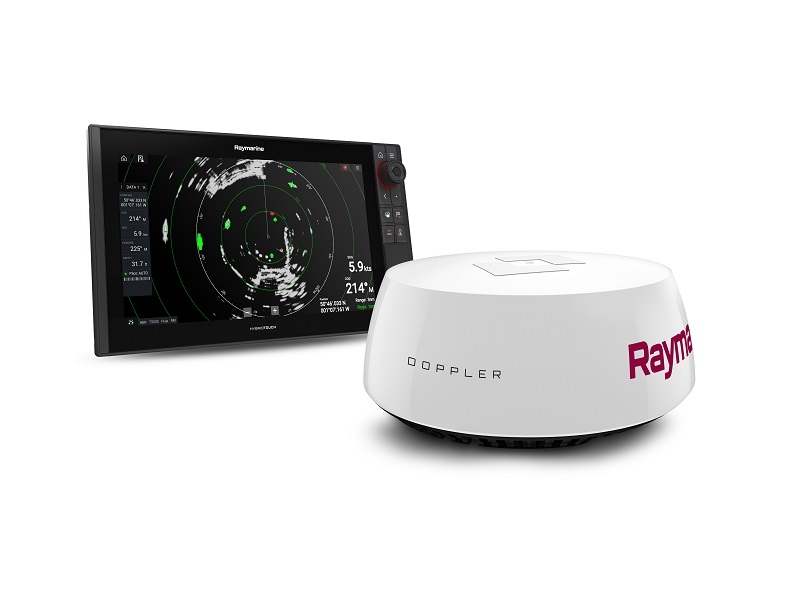

Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.

The Quantum 2 with Doppler truly sets the standard for on the water safety and collision avoidance.

GENERAL SPECIFICATIONS

• Dimensions - Diameter | Height: 541.0 mm | 209.5 mm
• Weight:  5.6 kg
• Supply voltage: Either 12 V dc or 24 V dc nominal
• Minimum: 10.8 V dc | Maximum: 31.2 V dc
• Power consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
• Waterproofing: IPX6
• Operating temperature range: -10°C to +55°C
• Storage temperature range: -25°C to +70°C
• Additional storage conditions: Store upright; do not block vents on underside
• Humidity: Up to 95% at 35°C
• Maximum wind speed: 100kts

TRANSMITTER

• Type: X-band solid-state transmitter with pulse compression technology
• Transmit frequency: 9354 MHz to 9446 MHz
• Peak power output: 20W
• Duplexer: Circulator
• Pulse widths (3 dB): 40 ns to 14.7
• Chirp lengths: Chirp lengths: 400 ns to
• Pulse repetition frequency: 2083 Hz
• Chirp bandwidth: Up to 32MHz
• Standby mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link – ON

ANTENNA

• Type: Patch array
• Beam width (nominal): Horizontal: 4.9° | Vertical: 20°
• Polarization: Horizontal
• Rotation speed: 24rpm nominal

DOPPLER

• Target Tracking: Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA)
• Target Filtering:   True Motion mode identifies only those objects that are moving relative to the vessel

COMPATIBILITY

• Radar Type: Quantum 2 with Doppler
• MFD Compatibility: Axiom and Axiom Pro
• Perfect for: Sailboats, RIBs, and smaller powerboats
• Type: Solid State CHIRP Pulse Compression with Doppler target tracking
• Range Performance: 24NM
• Performance: Lightweight and easy to install. Excellent short and long range performance. Detect targets as close as 18ft
• Automatic Bird Mode: No
• MARPA Target Tracking: Yes
