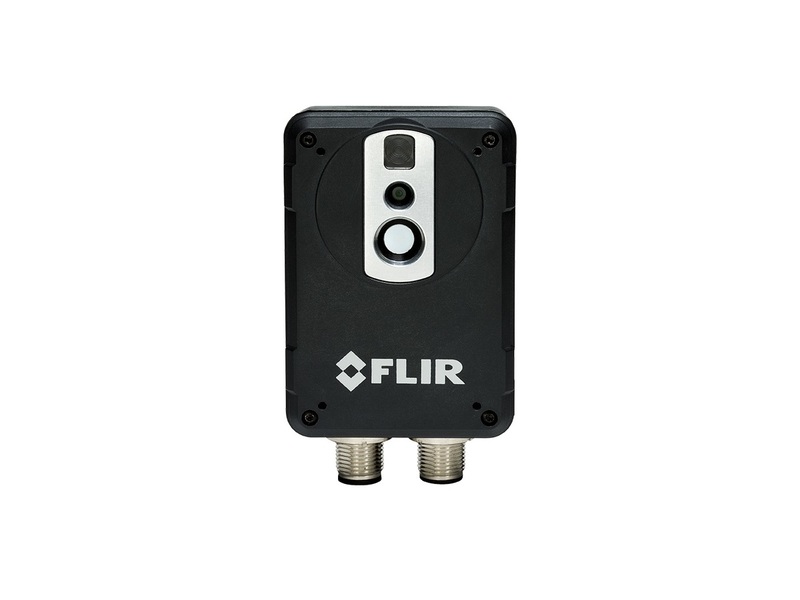

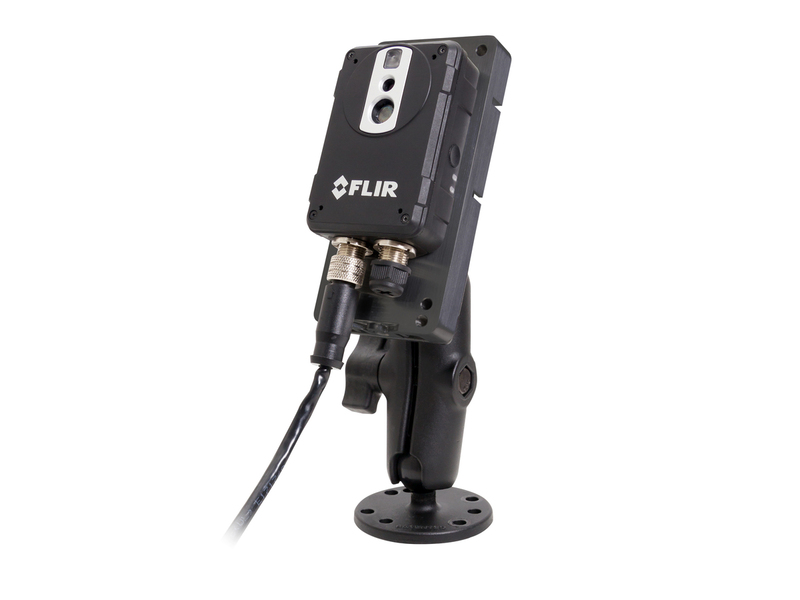

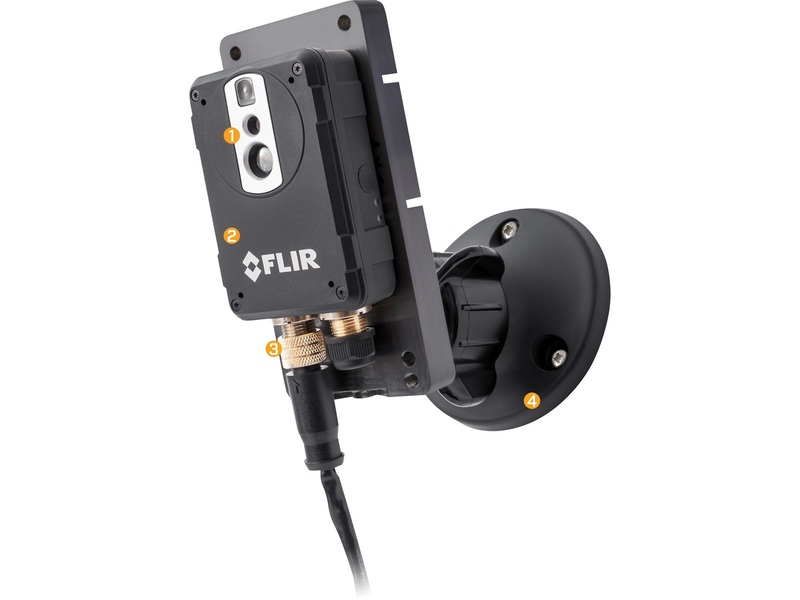

AX8 - Thermal Monitoring Camera

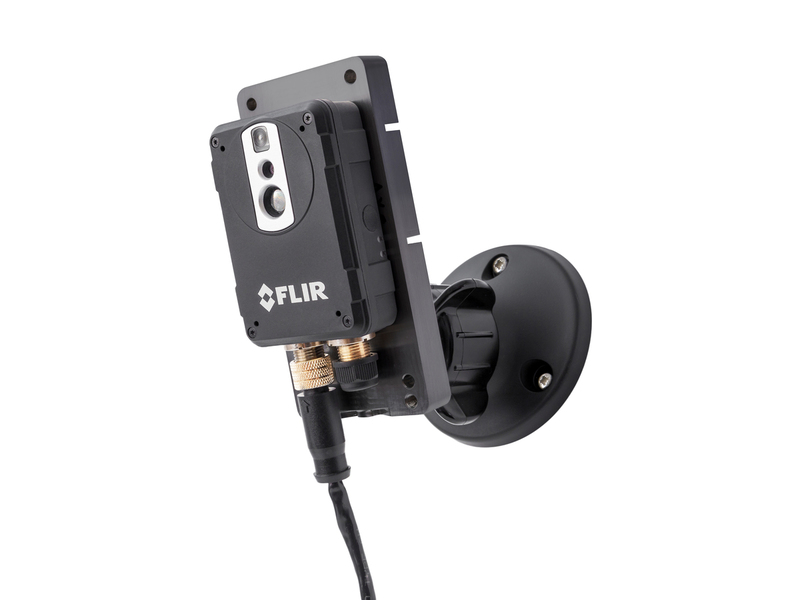

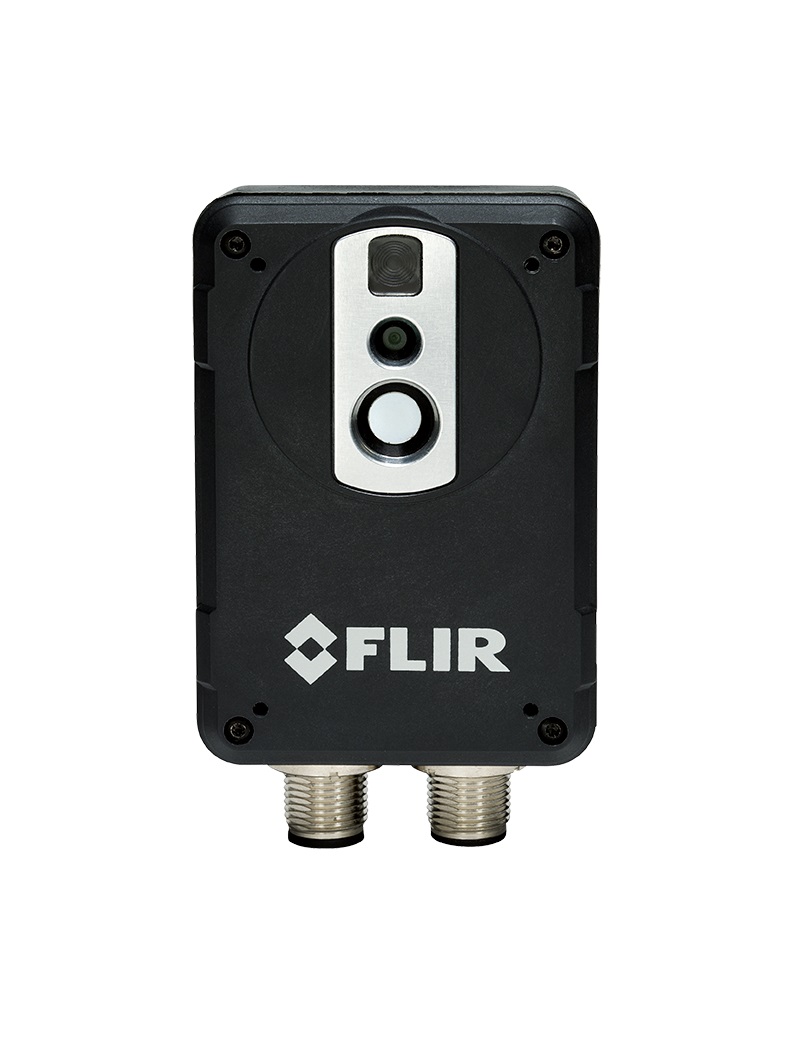

Gain an entirely new view of your vessel’s mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.

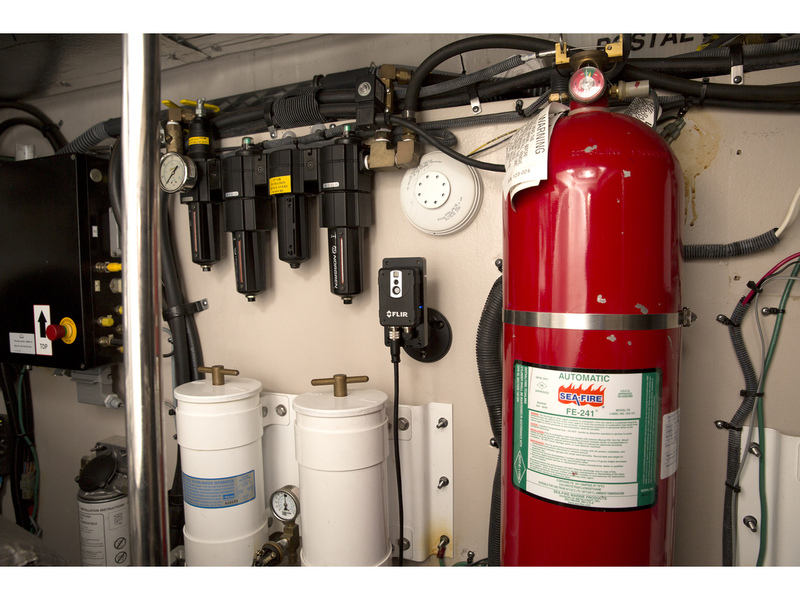

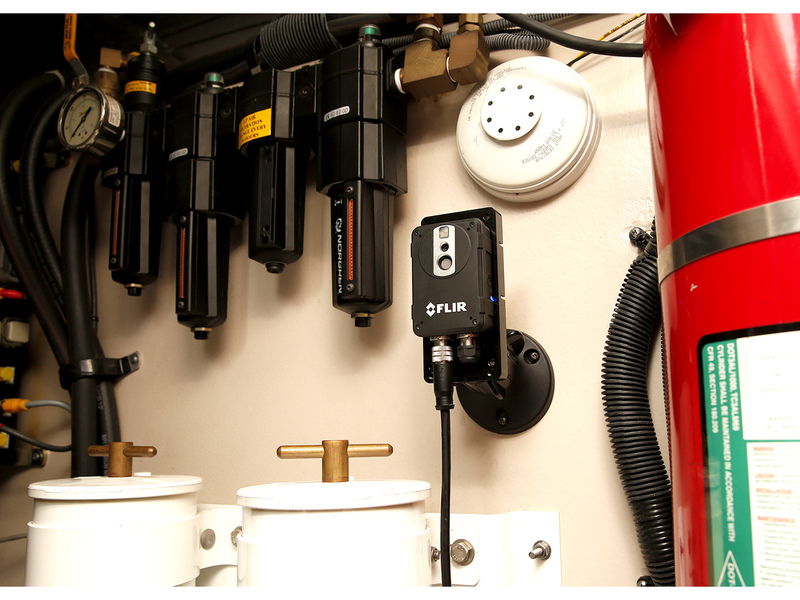

Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR’s exclusive MSX® imaging blends visible and thermal images for more detailed imagery that is easier to understand.

Spot Potential Problems Before They Happen

• State-of-the-art thermal monitoring of engines and onboard machinery
• Powered by Lepton, FLIR’s most advanced micro thermal camera
• Exclusive Multi-Spectral Dynamic Imaging (MSX®) for easy-to-understand thermal imagery.

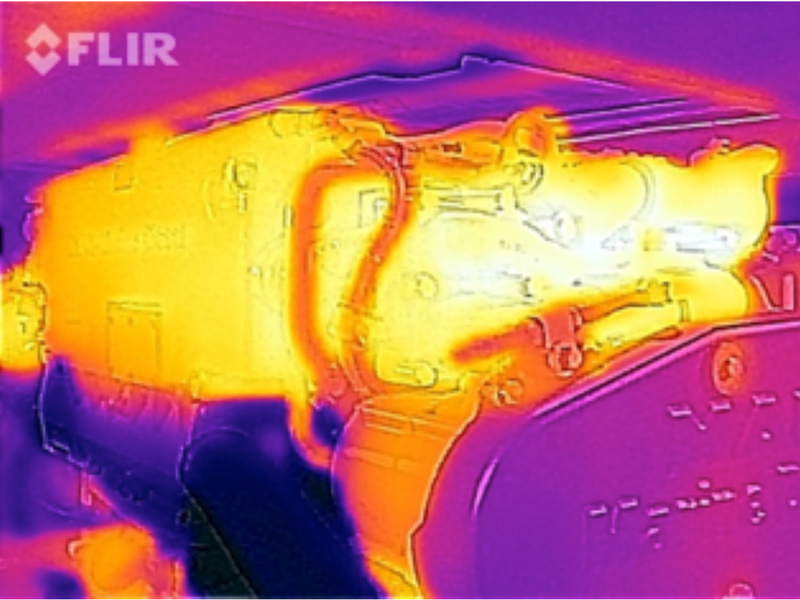

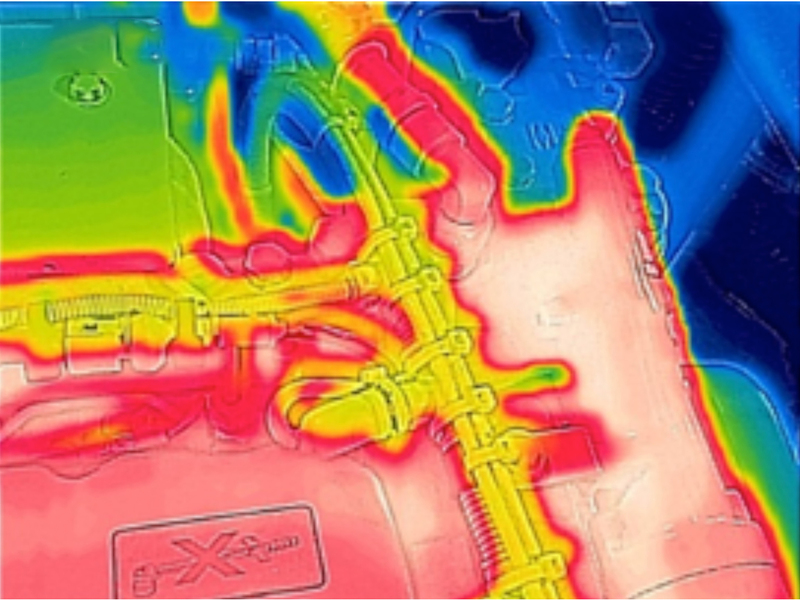

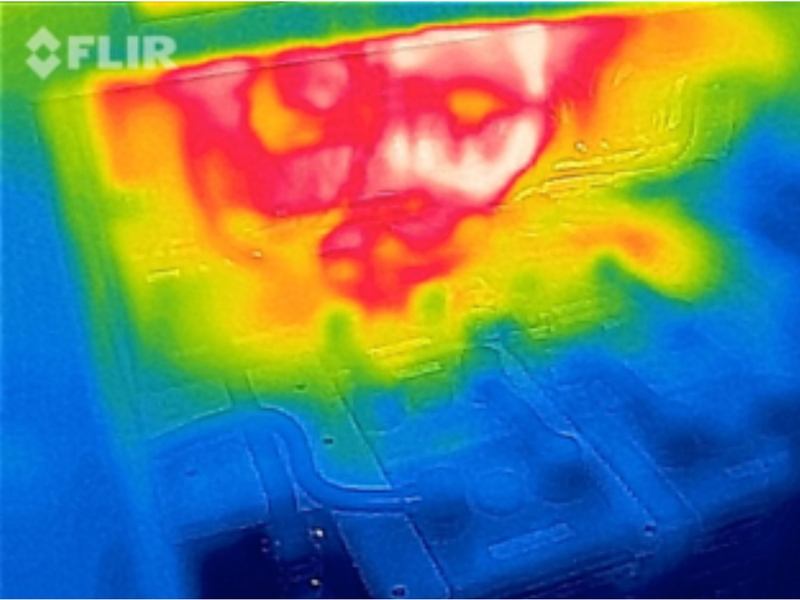

1. Engine Rocker Cover

2. Engine Exhaust Manifold

3. Fuel Line

On Board Thermal Alarming and Visual Analysis

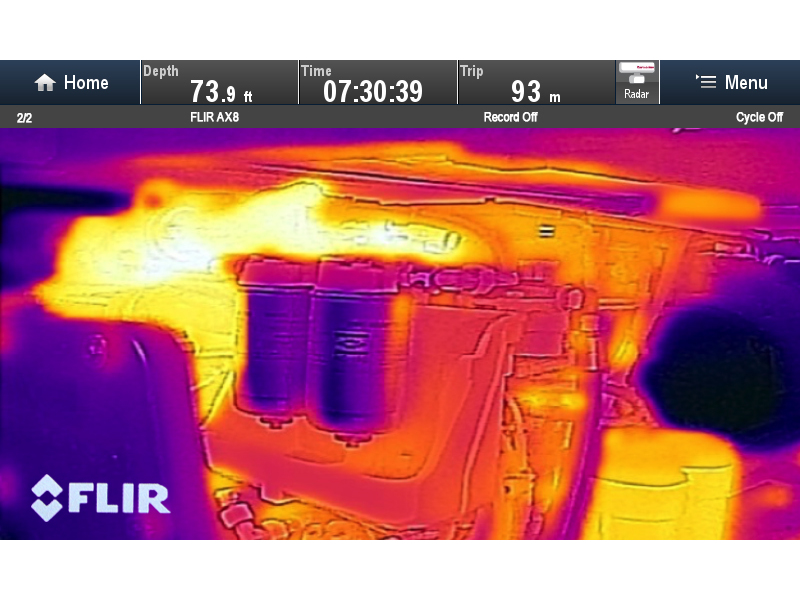

• Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery
• Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds
• Evaluate ongoing temperature trends
• Help avoid costly repairs and unwanted breakdowns

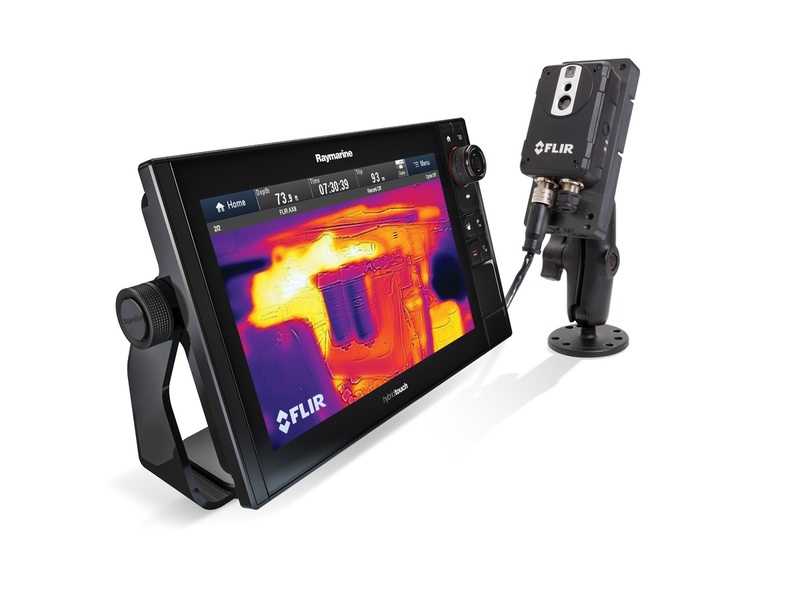

Raymarine Integration

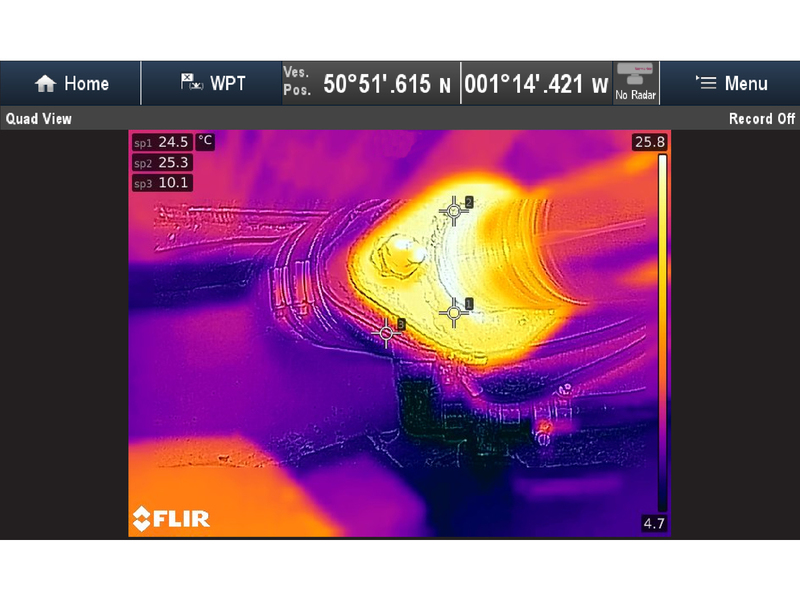

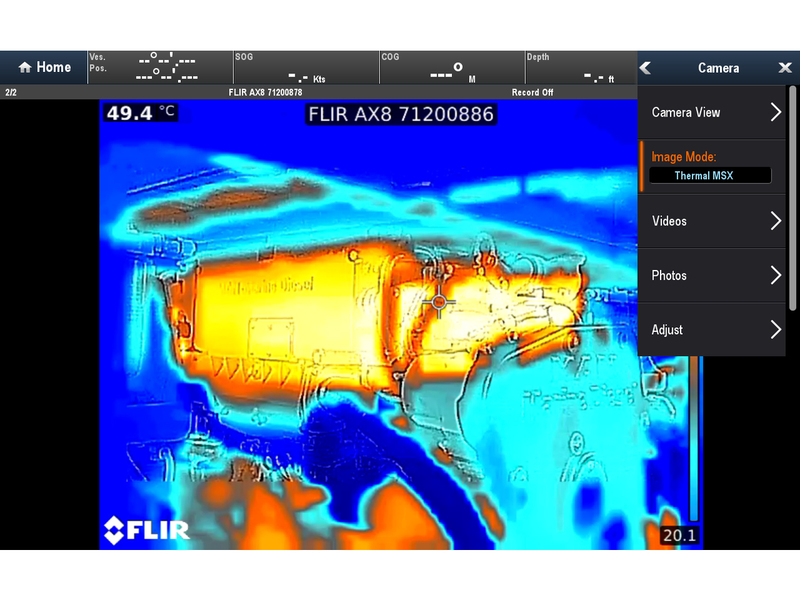

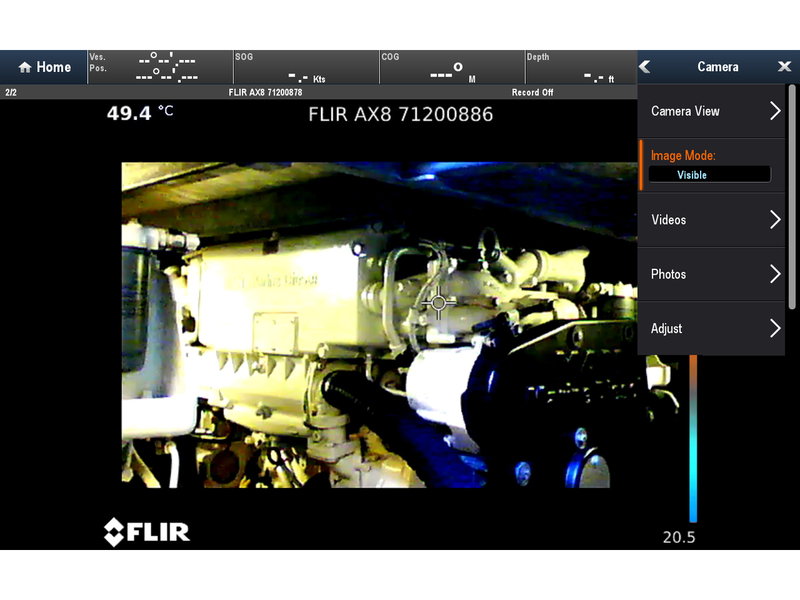

• View thermal, visible, and MSX video imagery on Raymarine LightHouse II™ MFDs
• Continuous thermal monitoring with audible and visual alarms across the Raymarine network
• Connect up to eight AX8 cameras using Ethernet

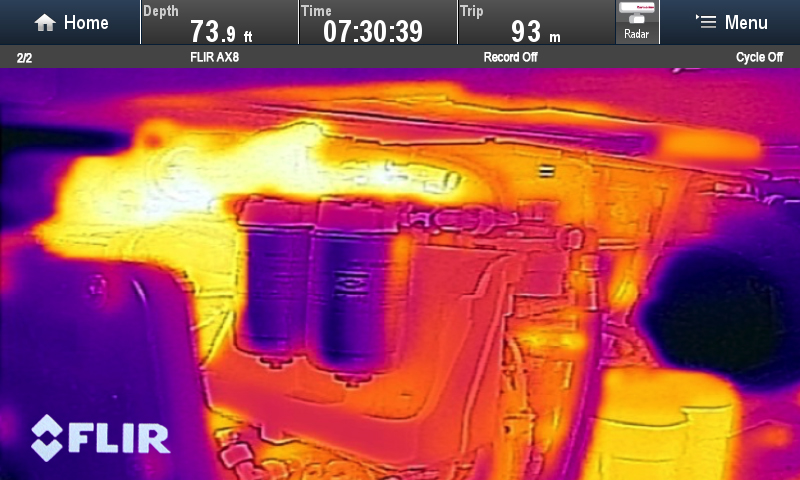

• View and record thermal video and snapshots from any Raymarine display on the network
• Easy setup and alarm programming with a PC and web browser

SPECIFICATIONS

IMAGING & OPTICAL DATA

• IR Resolution 80x60 pixels
• Thermal Sensitivity / NETD <0.10°C @ +30°C (+86°F) / 100mK
• Field of View (FOV) 48° x 37°
• Focus Fixed

DETECTOR DATA

• Detector Type Focal Plane Array (FPA) Uncooled Microbolometer
• Spectral Range 7.3-13µm

VISUAL CAMERA

• Built-in Digtal Camera 640x480
• Digital Camera FOV Adapts to the IR lens
• Sensitivity Minimum 10 Lux without illuminator

MEASUREMENT

• Object Temperature Range -10°C to +150°C (14°F to 302°F)
• Accuracy +/-2°C (+/-3.6°F) or +/-2% of reading (+10 to +100C@+10 to +35amb)

MEASUREMENT ANALYSIS

• Spotmeter 6
• Area 6 Boxes with max. / min. / average
• Automatic Hot / Cold Detection Max / Min temperature value and position shown within box
• Measurement Presets Yes
• Atmospheric Transmission Correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity
• Optics Transmission Correction Automatic, based on signals from internal sensors
• Emissivity Corrections Variable from 0.01 to 1.0
• Reflected Apparent Temperature Correction Automatic, based on input of reflected temperature
• External Optics / Windows Correction Automatic, based on input of optics / window transmission and temperature
• Measurement Corrections Global Object Parameters

ALARM

• Alarm Functions Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set
• Alarm Output Digital Out, store image, file sending (ftp), email (smtp), notification

SET-UP

• Color Palettes Color palettes (BW, BW inv, Iron, Rain)
• Set-up Commands Data / Time, Temperature °C/°F
• Web Interface Yes

STORAGE OF IMAGES

• Storage Media Built-in memory for internal storage
• Image Storage Mode IR, Visual, MSX
• File Formats Jpeg + FFF

ETHERNET

• Ethernet Control, result and image
• Ethernet Type 100 Mbps
• Ethernet Standard IEEE 802.3
• Ethernet Connector Type M12 8-pin X-coded
• Ethernet Video Streaming Yes
• Ethernet Power Power over Ehternet, PoE IEEE 802.3as class 0
• Ethernet Protocols Ehternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)

MARINE ELECTRONICS INTERFACE

• Multifunction Displays Network compatible with Raymarine LightHouse II multifunction displays

IMAGE STREAMING

• Image Streaming Formats Motion JPEG, MPEG, H.264
• Image Streaming Resolution 640x480
• Image Modes Thermal, Visual, MSX (IR-image with enhanced detail presentation)
• Automatic Image Adjustment Continuous

POWER SYSTEM (POE Injector)

• External Power Operations 12/24VDC, 2W continuously / 3.1W absolute max
• External Power Connector Screw Connection (12V/0V/Chassis)
• Voltage Allowed Range 9-36VDC

ENVIRONMENT DATA

• Operating Temperature Range 0°C to +50°C (32°F to +122°F)
• Storage Temperature Range –40°C to +70°C (–40°F to +158°F) IEC 68-2-1 and IEC 68-2-2
• Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles
• EMC EN 61000-6-2:2001 (Immunity) | EN 61000-6-3:2001 (Emission) | FCC 47 CFR Part 15 Class B (Emission) | EN 60945:2002 | EN60945 (Electromagnetic Compliance)
• Encapsulation IP67 (IEC 60529)
• Bump 25 g (IEC 60068-2-29)
• Vibration 2 g (IEC 60068-2-6) | EN 60945:2002
• Ignition Protection EN 28845:1993

PHYSICAL DATA

• Camera size (L × W × H) 54 × 25 × 79 mm (2.1 x 1 x 3.1 in.) w/o connectors | 54 × 25 × 95 mm (2.1 x 1 x 3.7 in.) w/ connectors
